Stay Organized + Save Time Using

Jun 2, 2017

Recently I’ve been trying to keep my commit history clean and organized with better branch management and more frequent commits, but one file kept taking up an inordinate amount of time. Can you guess which one?

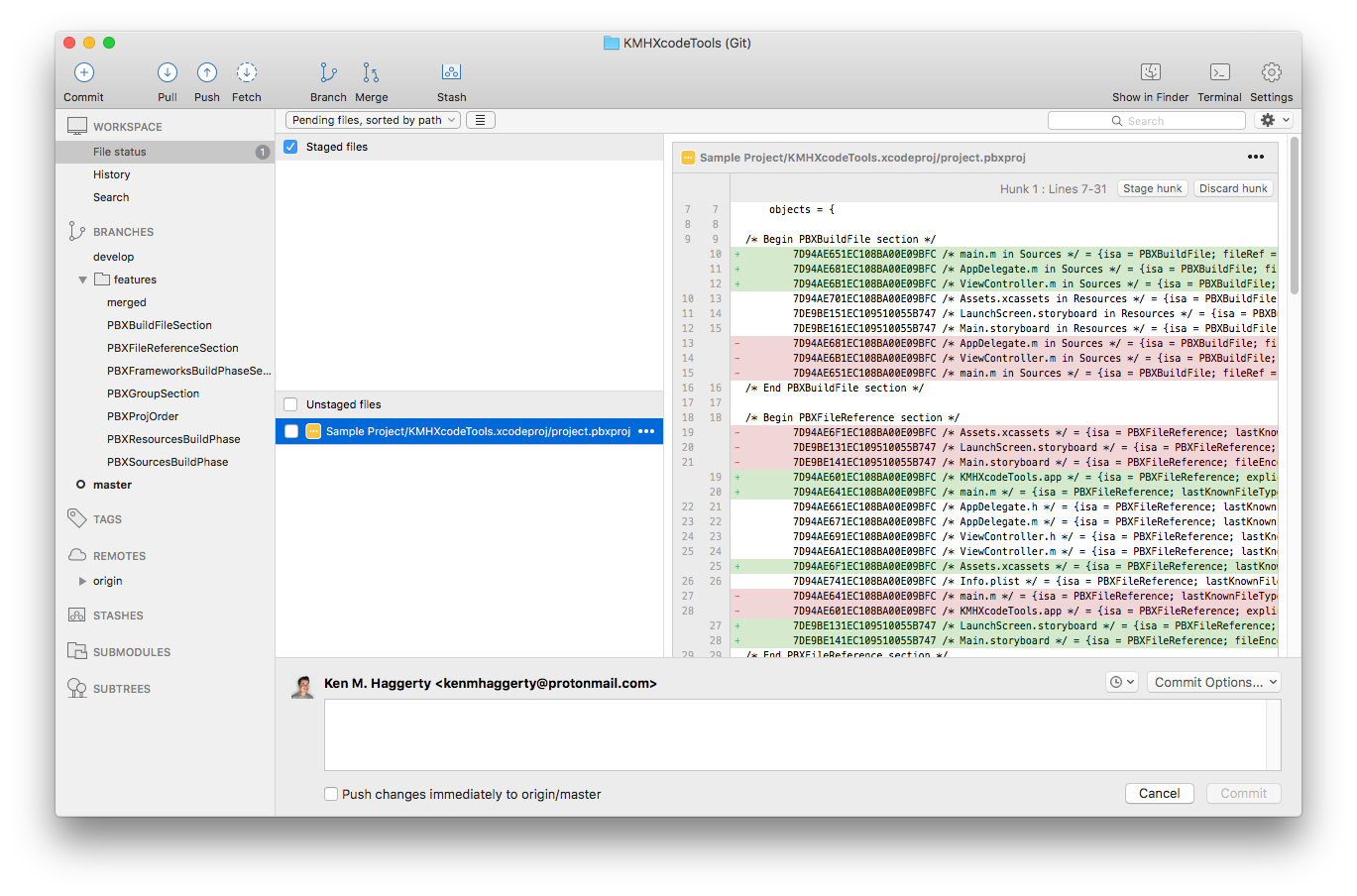

Above Even a small change to your Xcode project can seem to cause a cascade of changes to your project.pbxproj file inside of your .xcodeproj file.

Yup, it’s project.pbxproj, a hidden file within your project’s .xcodeproj file. This file is created, used, and managed by Xcode to keep track of all the files, folders, and frameworks in your project, including the way your files are organized in your Project navigator within Xcode. It also keeps track of your project’s settings and metadata.

In theory, this is a file you shouldn’t have to touch, and for the most part, you don’t have to touch it all. However, some issues arise when you’re working on multiple branches and attempting to merge things back together. For example, let’s say that you have two branches that you’re working on, and within each branch, you’ve separately imported the same class (HelloWorld.h/.m). What happens when you try to merge these two branches together?

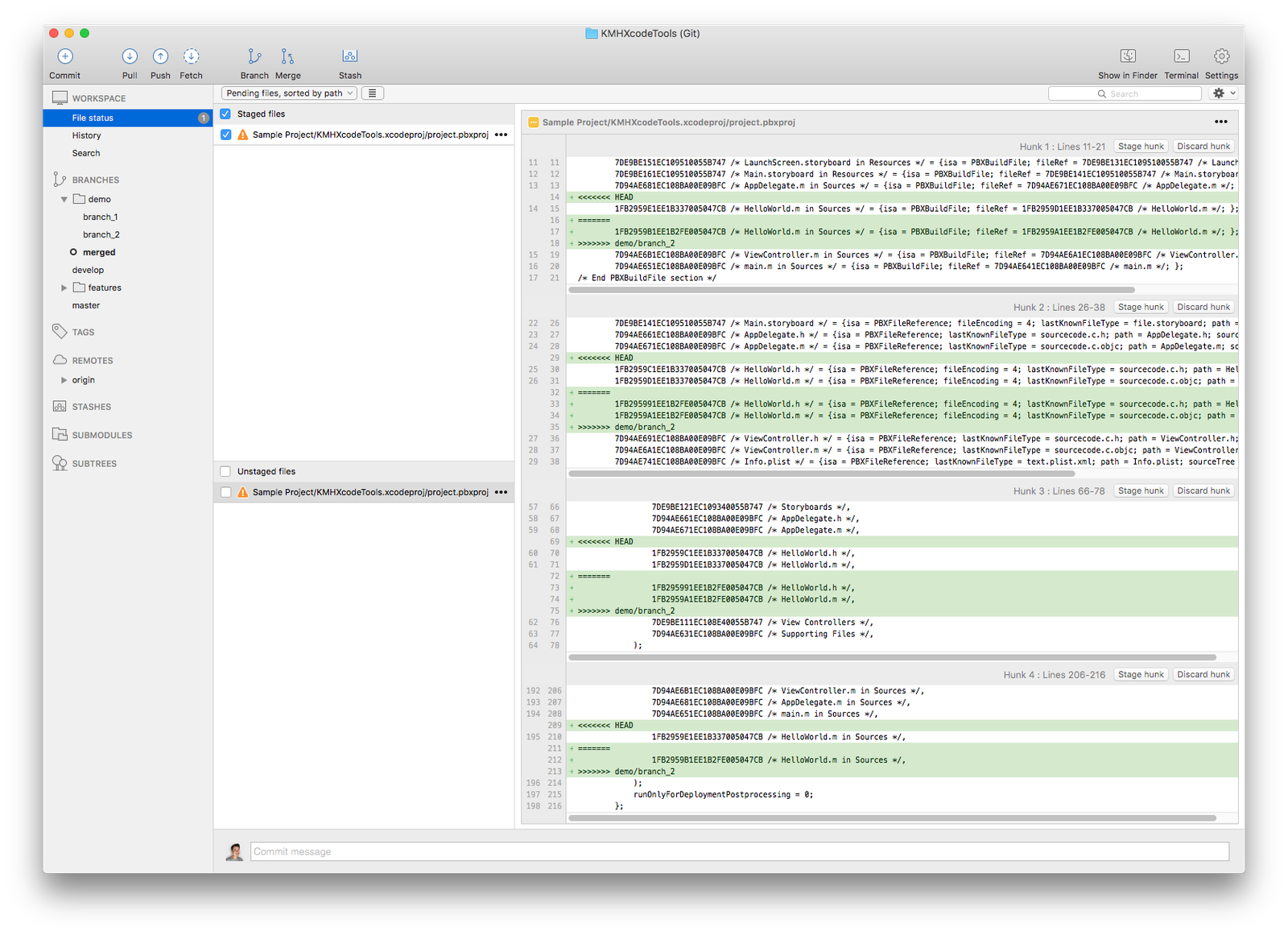

Above Merge conflicts arise because identical files imported on different branches are assigned unique UUIDs by Xcode. Failing to use a consistent UUID for each imported file can cause issues opening your Xcode project.

Ideally, git (or whatever version control you’re using) should recognize that the two separately imported references are the same file. However, because Xcode generates a unique UUID for each imported reference, the two HelloWorld files will have different UUIDs. Since git is agnostic to what you’re committing, it won’t recognize that these two imports are actually for the same file, so you’ll have to resolve this conflict manually during merging.

If you’re only working with a few files, these merge conficts are pretty easy to resolve, especially if you’re using a visual editor like SourceTree. However, as your project comes to encompass more and more files, frameworks, and imports, the time it takes to manage pbxproj.xcodeproj seems to grow exponentially.

There are two additionally vexing behaviors of Xcode which make manually sorting your project.pbxproj file even more time consuming. The first is that Xcode will sort the files and references in your project.pbxproj file alphabetically based on their UUIDs. This sorting isn’t completely random, as Xcode generates UUIDs in alphabetically increasing order (so that newly created or imported files have higher UUIDs than older files), but it is obnoxious. The second behavior is that Xcode sorts pbxproj.xcodeproj each time you build. 😑

Solving Sorting Through Scripting!

Thankfully, computers are the ideal tool for performing tedious repetitive tasks quickly and automatically. As such, I’ve written a Python script called KMHXcodeTools that will organize your project.pbxproj file each time you build based on how your files and folders are sorted in your Project navigator in Xcode.

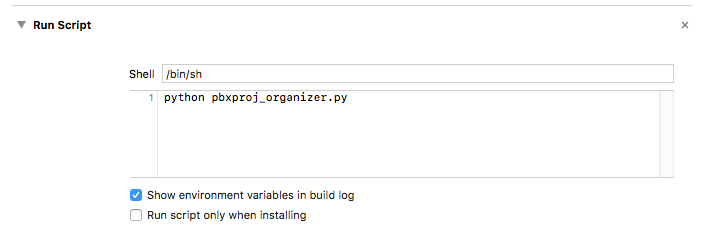

To use this script, simply download or fork from GitHub, copy the file into your Xcode project’s directory so that it is a sibling to your .xcodeproj file, and add the following Run Script under Build Phases in Xcode:

Above The run script above will execute each time you build your Xcode project. The text contained acts as if entered into your computer's Terminal from within your project's directory.

And that’s it! Now, instead of having to manually reorganize your project.pbxproj file just to see if any files have indeed been added or removed, the script will do it automatically, saving hours of time each time you commit.

How It Works; or, Regex To The Rescue!

This script uses regular expressions to search for textual patterns in project.pbxproj and parse the file accordingly. For us, this means determining the order by which we want to sort our files and then sorting all sections where these files are referenced in order to maintain consistent sorting across branches.

For simplicity’s sake, I’ve put all of my code in a single file (so that you only have to import one file), but if you take a look inside of, you’ll see a bunch of functions for actually performing the sorting followed by the script that calls those functions.

There’s a lot of code inside of, so I won’t go over what all of it does line-by-line, but here’s a high-level overview of what it does:

  1. Open project.pbxproj
    Pretty straightforward, but key. If you have multiple .xcodeproj files in your directory, the script will sort each one’s project.pbxproj file.
  2. Determine Order Using PBXGroup Section
    In addition to determining our sort order via the parent-child relationships in the PBXGroup section, this steps also searches the PBXBuildFile section for additional identifiers for certain files (e.g., .m, .xcassets, and .storyboard files), as some sections of project.pbxproj use this identifier rather than the value for fileRef.
  3. Update Sections Using Extracted Order
    The six main sections of project.pbxproj our code touches are PBXBuildFile, PBXFileReference, PBXFrameworksBuildPhase, PBXGroup, PBXResourcesBuildPhase, and PBXSourcesBuildPhase.
  4. Save Changes To project.pbxproj
    Also straightforward but key.

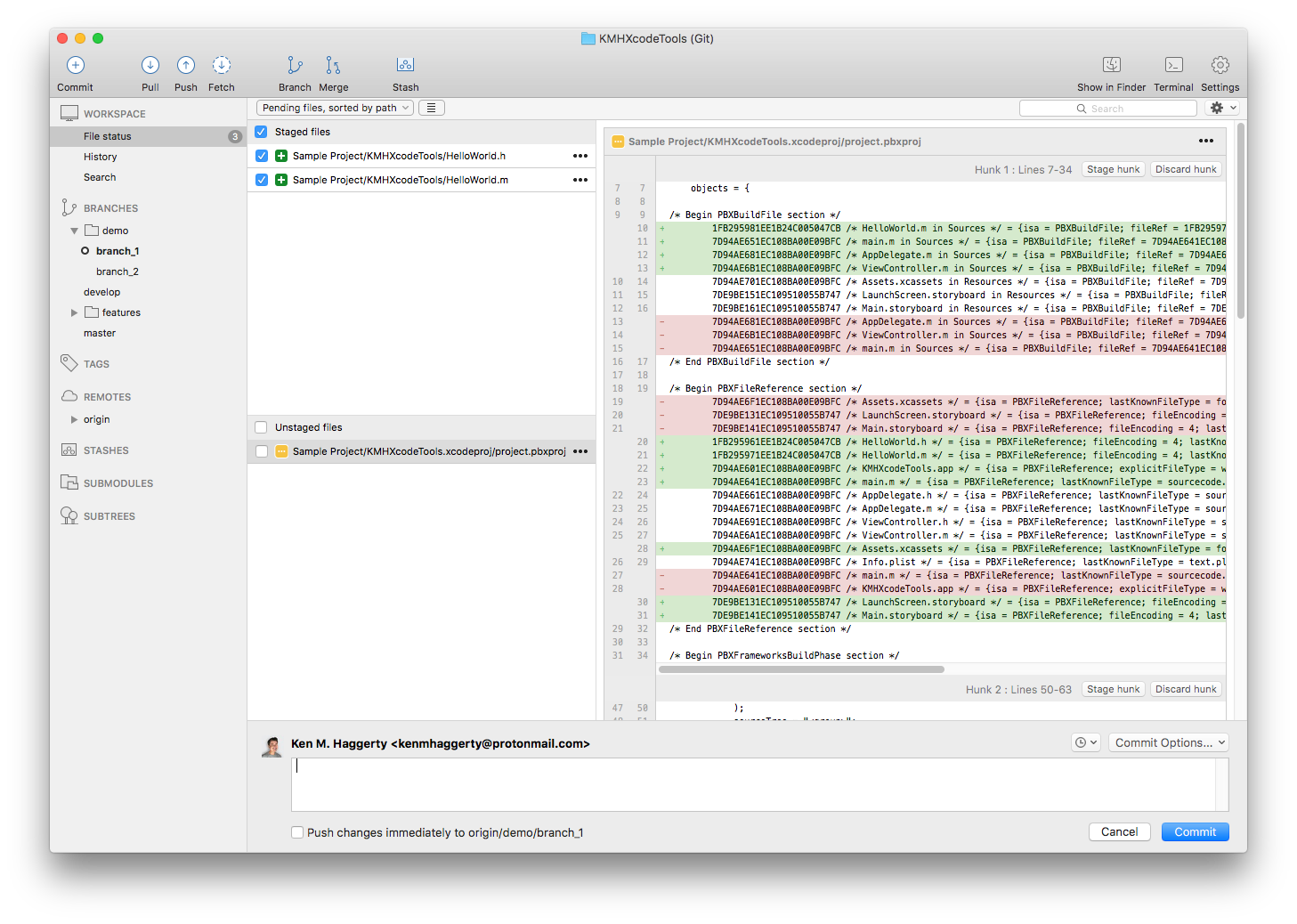

What that means for you is that instead of seeing this:

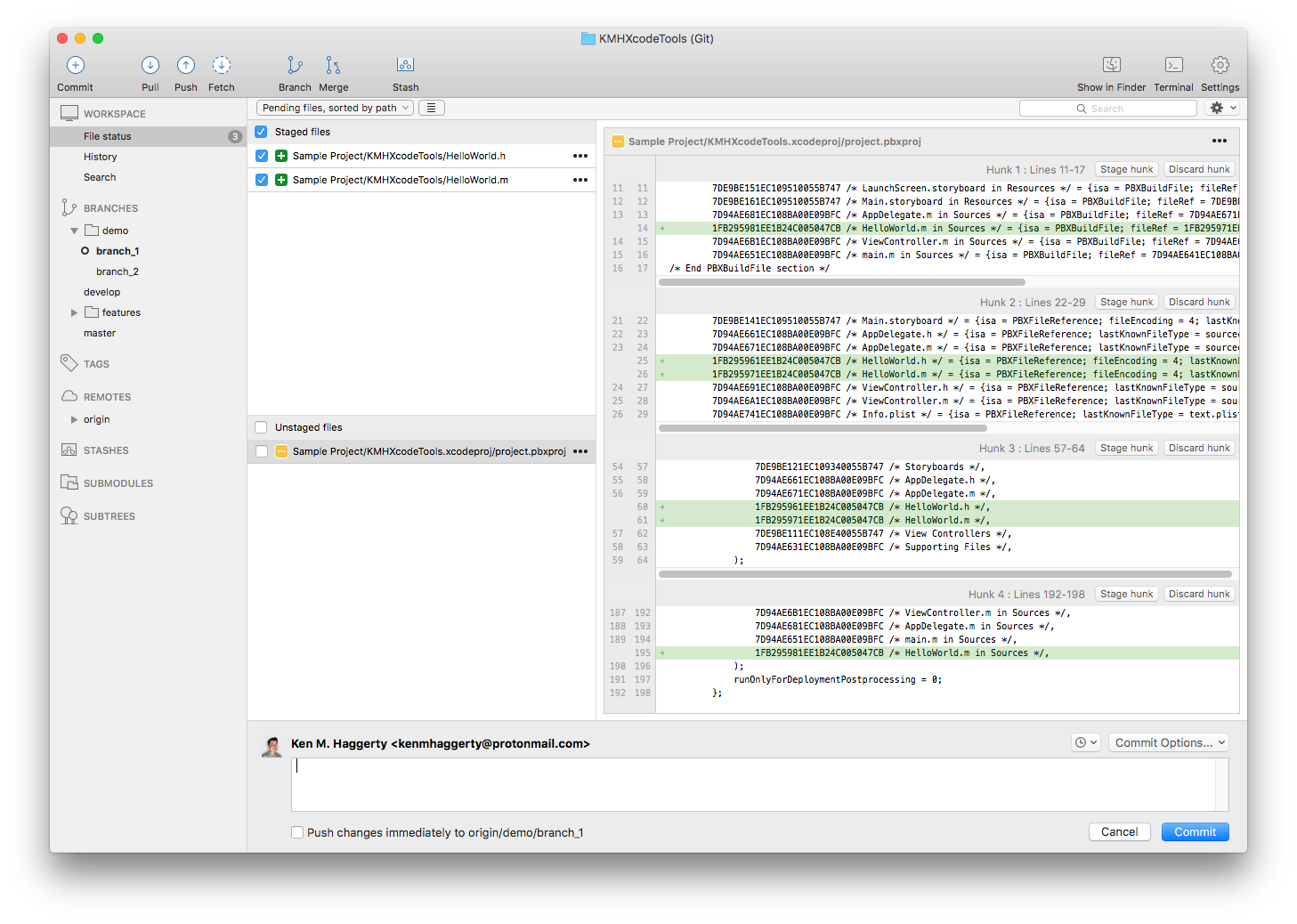

you’ll now see this:

which I think we can all agree is a whole lot better! 😅

Questions? Suggestions?

As always, please let me know what you think, and feel free to contribute, either by forking my repo on GitHub and submitting a pull request for your submissions or else just emailing me directly.
